DA-G2.Entry MOST150 Mercedes

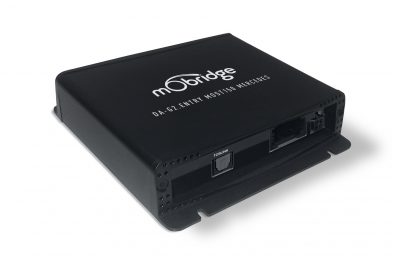

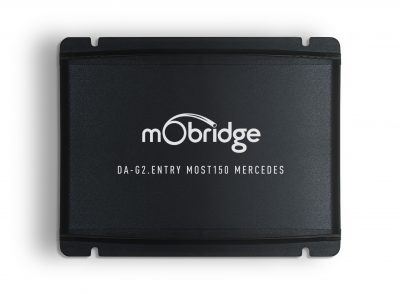

The mObridge DA-G2.Entry MOST150 pre-amplifier provides a connection between the in-vehicle MOST150 system, with any aftermarket DSP/amplifier containing TOSLINK input capability.

It provides a TOSLINK output, and an amplifier turn on/off control. Multi-vehicle compatibility is provided via DIP switches, and a USB connection can be used to connect it to the mObridge DSP user interface for configuration and firmware updates.

The DA-G2.Entry MOST150 does not contain advanced DSP controls beyond what the vehicle provides, such as bass, treble, fade, and balance. For a complete DSP solution, with advanced DSP algorithms, the DA-G2.Pro MOST150 can be used. If only basic analog + TOSLINK outputs are required, the DA-G2.Standard MOST150 can be used.

Description

The DA-G2.Entry MOST150 has been specifically designed for MOST150 systems to interface seamlessly into the vehicle bus network for unprecedented control and audio reproduction.

Blackfin DSP

The heart of the device is a 533MHz Blackfin Digital Signal Processor (DSP). The DA-G2.Entry MOST150 mono channel volume controls only. It does not contain any advanced DSP processing beyond what the vehicle controls provide such as bass, treble, balance, and fade etc.

Burr-Brown

The pre-amp stage is driven by a Burr Brown DAC converter, providing an audiophile quality without compromise.

Seamless Integration

The DA-G2.Entry MOST150 interfaces seamlessly with the controls of the vehicle. Volume, fade, balance, bass, and treble remain completely controllable via the existing vehicle controls, and all factory audio such as parking sensors, navigation, voice, and telephone are integrated to behave exactly as per the original system. This means that unlike other integration options, there is no need for mounting of any additional controls inside the vehicle. The vehicle will look and feel stock, with exceptional audio quality.

mObridge DSP User Interface

The DA-G2.Entry MOST150 utilizes the mObridge DSP desktop application for Windows/macOS to harness the full potential of the DSP. The application is also able to provide automatic online firmware updates.



Note: This product is only compatible with Mercedes-Benz vehicles equipped with MOST150 audio systems.

Digital TOSLINK Output
  • Stereo TOSLINK output
Vehicle Interface
  • Support for volume/fade/balance on factory radio and/or steering wheel
  • Support for all factory-fitted audio sources (eg telephone/navigation/voice recognition/television/dvd) (where applicable)
  • Support for reverse park sensor audio overlay (where applicable)
  • Support for factory multi-band equalizer (where applicable)
  • MOST ‘T’ piece harness
  • Wiring harness
  • Female 2+0 MOST connector for harness extension
  • Male 2+0 shell for harness extension
  • MOST150 install booklet
  • DA-G2.Entry MOST150 instructions
Make Model Generation MY Start MY End Configuration Order Part No.
Mercedes-Benz A Class Small Car (W176) 2015 2018 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz B Class MPV (W246) 2015 2018 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz C Class Saloon/Coupe W205 2015 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz CLA Class Sports Coupe (C117) 2015 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz CLS Class Saloon Coupe (W218) 2015 2018 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz E Class E Class Coupe (C207) 2015 2017 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz E Class E Class (W212) 2015 2016 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz E Class E Class (W213) 2017 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz G Class G-Wagen (W463) 2016 2018 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz GLS Class SUV (X166) 2016 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz GLA Class SUV (X156) 2016 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz GLC Class SUV (X253) 2016 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz M Class Mid Size SUV (W166) 2015 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz S Class Saloon (W222/C217/A217) 2014 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz SL Class Coupe/Convertible (R231) 2016 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz SLC Class Coupe/Convertible (R172) 2015 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz SLK Class Coupe/Convertible (R172) 2011 2015 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz V-Class Van (W447) 2014 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Mercedes-Benz AMG GT Coupe/Roadster (C190/R190) 2015 2019 NTG5, NTG5.1, NTG5.2, NTG5.5 DA-G2.ENTRY MOST150 MERCEDES
Documents Firmware UpdatesNOTE:
All firmware updates later than v2.0.0 MUST be installed over a minimum of v2.0.0. Failure to do so will cause malfunction.
