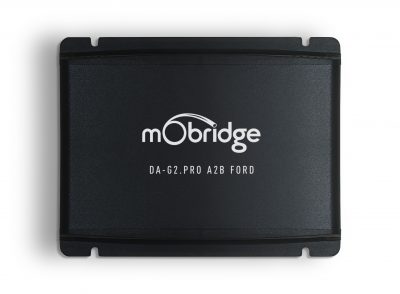

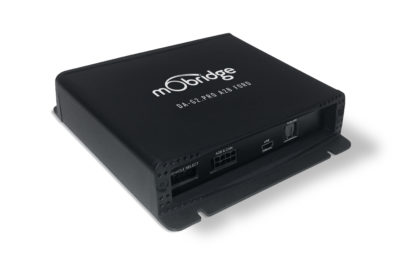

DA-G2.Pro A2B Ford

The mObridge DA-G2.Pro A2B pre-amplifier provides a connection between the in-vehicle Ford A2B infotainment system with any aftermarket analog/digital DSP/amplifier.

It provides 10 channels of RCA analog outputs, a TOSLINK output, and an amplifier turn on/off control. Multi-vehicle compatibility is provided via DIP switches, and a USB connection can be used to connect it to the mObridge DSP user interface for configuration and firmware updates.

The DA-G2.Pro A2B also allows adjustment of the mono sinks such as Phone, Navigation, PDC and Voice recognition to compensate for OEM systems that may need adjustment. The DA-G2.Pro also allows the mono sink channels to bypass the time buffering to avoid delays and issues such as echo cancellation and delayed reverse park beeps.  The DA-G2.Pro is the most advanced OEM DSP available for these vehicles.

The DA-G2.Pro A2B is a complete DSP solution, with advanced DSP algorithms. If only basic analog + TOSLINK outputs are required, the DA-G2.Standard A2B Ford can be used. Where only basic TOSLINK outputs are required, the DA-G2.Entry A2B Ford can be used.

SKU: 202C Categories: , Tag:

Description

The DA-G2.Pro A2B Ford has been specifically designed for A2B systems to interface seamlessly into the vehicle bus network for unprecedented control and audio reproduction.

Blackfin DSP

The heart of the device is a 533MHz Blackfin Digital Signal Processor (DSP). With it, the DA-G2.Pro A2B is capable of concurrently running advanced DSP algorithms on up to 12 channels. It provides full access to channel mapping, channel summing, parametric crossovers, a 1024 point graphic equalizer, channel high/low/band-pass filters, phase inversion, time alignment, master/channel gain control, center channel upmixing algorithms, in-vehicle preset control, and many other features.

Burr-Brown

The pre-amp stage is driven by a Burr Brown DAC converter, providing an audiophile quality without compromise.

Seamless Integration

The DA-G2.Pro A2B interfaces seamlessly with the controls of the vehicle. Volume, fade, balance, bass, and treble remain completely controllable via the existing vehicle controls, and all factory audio such as parking sensors, navigation, voice, and telephone are integrated to behave exactly as per the original system. This means that unlike other integration options, there is no need for mounting of any additional controls inside the vehicle. The vehicle will look and feel stock, with exceptional audio quality.

mObridge DSP User Interface

The DA-G2.Pro A2B utilizes the mObridge DSP desktop application for Windows/macOS to harness the full potential of the DSP. The application is also able to provide automatic online firmware updates.

Note: This product is only compatible with Ford vehicles equipped with A2B B&O audio systems.

Ford

Model Generation Configuration Year
EcoSport SUV Sync 3 with B&O or Revel amplifier 2018 - 2020
Endura SUV Sync 3 with B&O or Revel amplifier 2019 - 2020
Escape SUV Sync 3 with B&O or Revel amplifier 2018 - 2020
Everest SUV Sync 3 with B&O or Revel amplifier 2018 - 2020
Expedition SUV Sync 3 with B&O or Revel amplifier 2018 - 2020
Explorer SUV Sync 3 with B&O or Revel amplifier 2020
F-150 Pickup Sync 3 with B&O or Revel amplifier 2018 - 2020
F-250 Super Heavy Duty Sync 3 with B&O or Revel amplifier 2020
F-350 Super Heavy Duty Sync 3 with B&O or Revel amplifier 2020
F-450 Super Heavy Duty Sync 3 with B&O or Revel amplifier 2020
F-550 Super Heavy Duty Sync 3 with B&O or Revel amplifier 2020
Fiesta Car Sync 3 with B&O or Revel amplifier 2019 - 2020
Focus Car Sync 3 with B&O or Revel amplifier 2018 - 2020
Puma Car Sync 3 with B&O or Revel amplifier 2019 - 2020
Raptor Pickup Sync 3 with B&O or Revel amplifier 2017 - 2020
Analog Outputs
  • 10 channels RCA full-range
  • 4V RMS
  • 192kHz Sampling 24-bit digital to analog converter (DAC)
Digital TOSLINK Output
  • Stereo TOSLINK output
Vehicle Interface
  • Support for volume/fade/balance on factory radio and/or steering wheel
  • Support for all factory-fitted audio sources (eg telephone/navigation/voice recognition/television/dvd) (where applicable)
  • Support for reverse park sensor audio overlay (where applicable)
  • Support for factory multi-band equalizer (where applicable)
  • Wiring harness
  • 8x RCA plug adapter
  • A2B install booklet
  • DA-G2.Pro A2B instructions
Documents Firmware UpdatesNOTE:
All firmware updates later than v2.0.0 MUST be installed over a minimum of v2.0.0. Failure to do so will cause malfunction.
