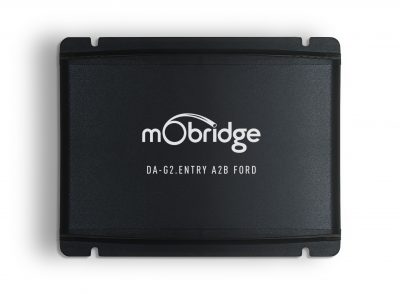

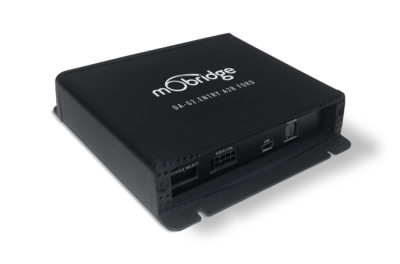

DA-G2.Entry A2B Ford

The mObridge DA-G2.Entry A2B pre-amplifier provides a connection between the in-vehicle A2B system, with any aftermarket DSP/amplifier containing TOSLINK input capability.

It provides a TOSLINK output, and an amplifier turn on/off control. Multi-vehicle compatibility is provided via DIP switches, and a USB connection can be used to connect it to the mObridge DSP user interface for configuration and firmware updates.

The DA-G2.Entry A2B does not contain advanced DSP controls beyond what the vehicle provides, such as bass, treble, fade, and balance. For a complete DSP solution, with advanced DSP algorithms, the DA-G2.Pro A2B Ford can be used. If only basic analog + TOSLINK outputs are required, the DA-G2.Standard A2B Ford can be used.

Description

The DA-G2.Entry A2B has been specifically designed for A2B systems to interface seamlessly into the vehicle bus network for unprecedented control and audio reproduction.

Blackfin DSP

The heart of the device is a 533MHz Blackfin Digital Signal Processor (DSP). The DA-G2.Entry A2B allows for mono channel gain adjustment only (phone, Nav, PDC etc) via the PC interface. It does not contain any advanced DSP processing beyond what the vehicle controls provide such as bass, treble, balance, and fade etc.

Burr-Brown

The pre-amp stage is driven by a Burr Brown DAC converter, providing an audiophile quality without compromise.

Seamless Integration

The DA-G2.Entry A2B interfaces seamlessly with the controls of the vehicle. Volume, fade, balance, bass, and treble remain completely controllable via the existing vehicle controls, and all factory audio such as parking sensors, navigation, voice, and telephone are integrated to behave exactly as per the original system. This means that unlike other integration options, there is no need for mounting of any additional controls inside the vehicle. The vehicle will look and feel stock, with exceptional audio quality.

mObridge DSP User Interface

The DA-G2.Entry A2B utilizes the mObridge DSP desktop application for Windows/macOS to harness the full potential of the DSP. The application is also able to provide automatic online firmware updates.



Note: This product is only compatible with Ford vehicles equipped with the B&O A2B audio systems.

Software Links

Digital TOSLINK Output
  • Stereo TOSLINK output
Vehicle Interface
  • Support for volume/fade/balance on factory radio and/or steering wheel
  • Support for all factory-fitted audio sources (eg telephone/navigation/voice recognition/television/dvd) (where applicable)
  • Support for reverse park sensor audio overlay (where applicable)
  • Wiring harness
  • A2B install booklet
  • DA-G2.Entry A2B instructions
Make Model Generation MY Start MY End Configuration Order Part No.
Ford Escape SUV 2018 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Expedition SUV 2018 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Expolorer SUV 2020 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford F-150 Pickup 2018 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford F-250 Super Heavy Duty 2020 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford F-350 Super Heavy Duty 2020 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford F-450 Super Heavy Duty 2020 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford F-550 Super Heavy Duty 2020 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Raptor Pickup 2017 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Everest SUV 2018 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Endura SUV 2019 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Escape SUV 2018 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford EcoSport SUV 2018 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Focus Car 2018 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Puma Car 2019 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Ford Fiesta Car 2019 Sync 3 with B&O or Revel amplifier DA-G2.ENTRY A2B FORD
Documents Firmware Updates
  • No Update Available
